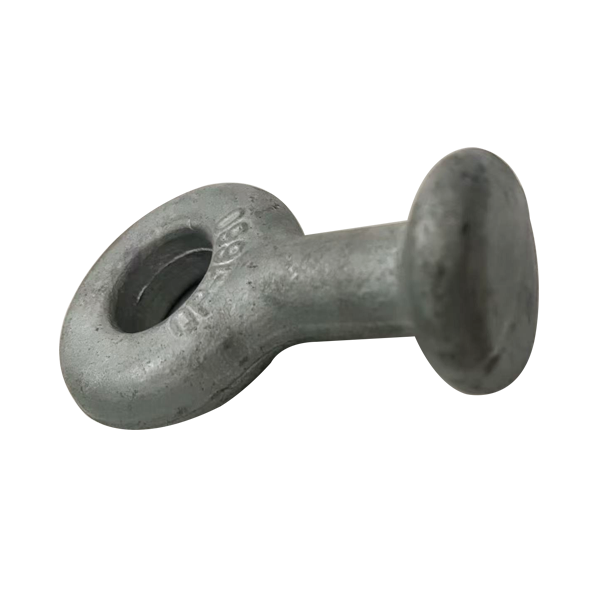

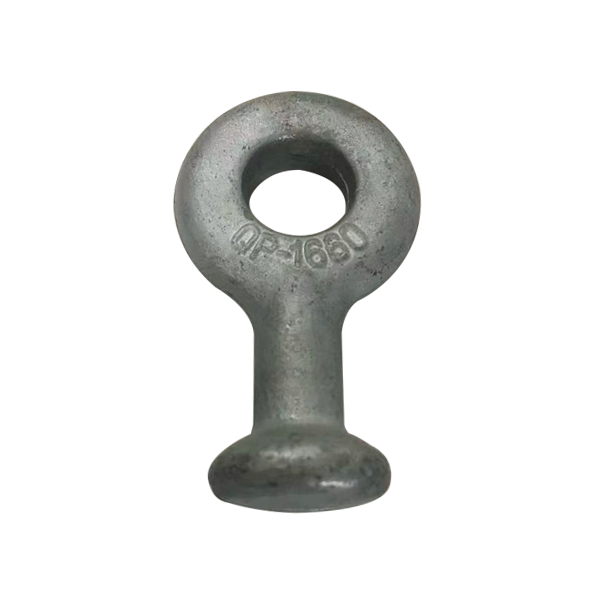

1. Arc curved structure with good anti-torsion and buffer performance
2. Integral forged design, high toughness and fatigue resistance
3. Thickened galvanized coating for long service life outdoors
4.Universal standard size, perfectly matched with global high voltage fittings

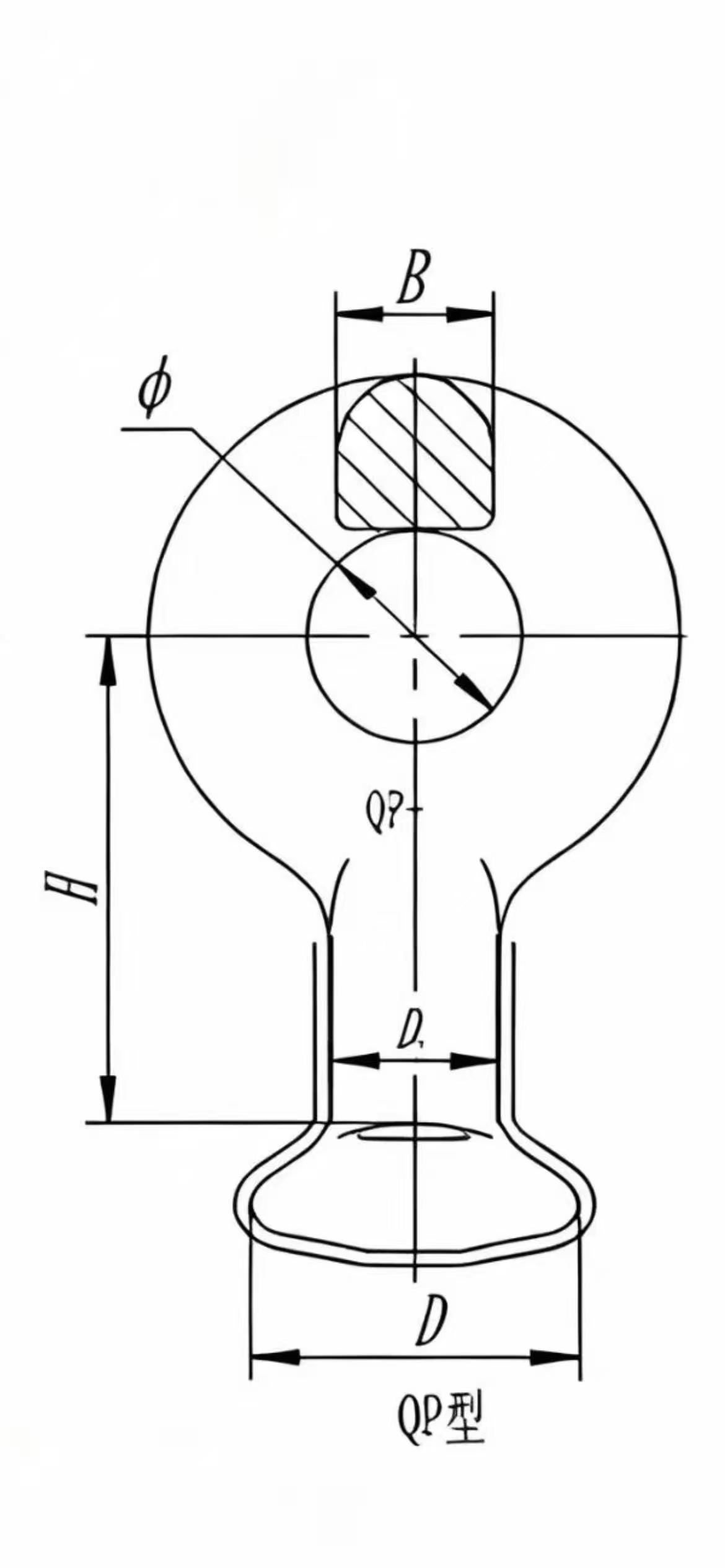

| Type | Ball Diameter (mm) | Eye Diameter (mm) | Overall Height (mm) | Rated Breaking Load (kN) | Weight (kg) |
| QP-7 | 17 | 18 | 50 | 70 | 0.3 |
| QP-10 | 17 | 20 | 50 | 100 | 0.3 |
| QP-12 | 17 | 24 | 60 | 120 | 0.5 |
| QP-16 | 21 | 26 | 60 | 160 | 0.55 |
| QP-21 | 25 | 30 | 80 | 210 | 0.9 |
| QP-30 | 28 | 39 | 80 | 300 | 1.1 |
All data is for reference only.
We can make customized products according to your needs.
